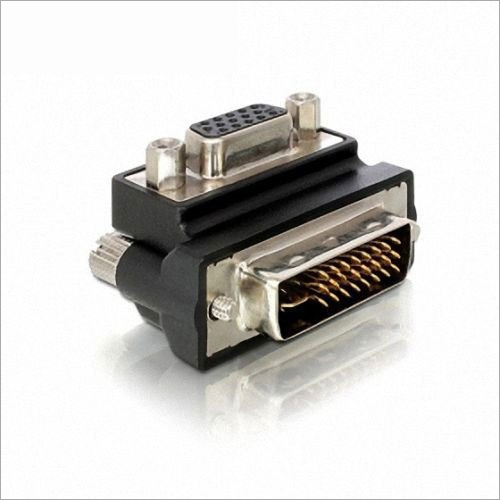

D Sub Right Angle Type Connectors

Name: D Sub Right Angle Type Connectors
Brand: ONLINE TECHNO SYSTEMS LLP
Price: 8 INR
Availability: InStock

Price 8 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

D Sub Right Angle Type Connectors Specification

Application
Industrial

Voltage Rating
220-240 V

Material
Metal

Connector
Right Angle Type Connectors

Flame Resistance Level
UL 94V-0

Color
Silver

Wire Gauge
24 AWG

D Sub Right Angle Type Connectors Trade Information

Minimum Order Quantity
1000 Pieces

Delivery Time
1-7 Days

Main Domestic Market
All India

About D Sub Right Angle Type Connectors

Material	Aluminum
Voltage	AC 1000V For 1 minute
Contact	Brass or Phosphor Bronze
Current Rating	5 A
Housing	PBT & 30% Glass Fiber (UL94V-0)
Brand	Online Techno

Position	A	B	C	D
9	17.78	24.99	31.04	16.33
15	26.15	33.32	39.24	24.66
25	39.94	47.04	53.04	38.66
37	56.56	63.5	69.62	54.84

	E	F	G
B	7.2	18.4	9.62
C	9.4	20.64	12.06
D	13.34	25.3	16.5

Built-In Flame Resistance for Enhanced Safety

Manufactured according to the UL 94V-0 standard, these D Sub Right Angle Type Connectors offer superior flame resistance. This property ensures that the connectors self-extinguish quickly, enhancing safety in demanding industrial environments where the risk of fire-related hazards is a concern.

Optimized Design for Efficient Installation

The right-angle structure of these connectors allows efficient use of space in confined settings. Their layout simplifies cable management and promotes organized connections, making them a reliable choice for control panels and machinery interfaces in various industrial sectors across India.

FAQ's of D Sub Right Angle Type Connectors:

Q: How are D Sub Right Angle Type Connectors typically used in industrial applications?

A: These connectors are primarily employed to establish secure electrical connections in control panels, machinery, and instrumentation where right-angle orientation is required, facilitating space-efficient installations.

Q: What benefits does the UL 94V-0 flame resistance rating provide?

A: The UL 94V-0 rating ensures the connectors quickly self-extinguish when exposed to flames, offering a higher level of safety by reducing the risk of fire propagation in industrial environments.

Q: When should I choose a right-angle type connector over a straight connector?

A: Right-angle type connectors are advantageous when wiring space is limited or when cables need to exit equipment at a 90-degree angle, supporting cleaner and safer cable organization.

Q: Where can these connectors be sourced in India?

A: These D Sub Right Angle Type Connectors are available through authorized distributors, suppliers, traders, and wholesalers throughout India, specializing in industrial electronic components.

Q: What is the typical process for installing these connectors?

A: Installation involves selecting the correct connector for a 24 AWG wire, securely affixing the wire to the connector terminals, and mounting the right-angle connector onto the equipment panel using suitable hardware for a firm fit.

Q: How does the material choice of metal enhance the connector's performance?

A: Metal construction ensures excellent electrical conductivity, superior shielding against electromagnetic interference, and robust mechanical strength, making these connectors reliable in demanding industrial settings.
