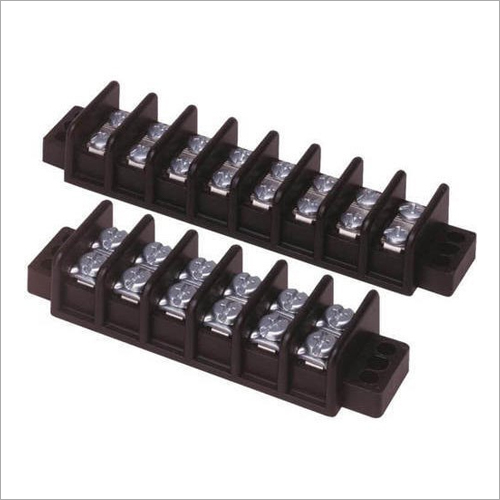

RF Male Connector Terminal Block

Name: RF Male Connector Terminal Block
Brand: ONLINE TECHNO SYSTEMS LLP
Price: 15 INR
Availability: InStock

Price 15 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

RF Male Connector Terminal Block Specification

Thickness
Standard (approx. 3mm)

Cable Diameter
4-8mm

Application
Electric Appliances, Electronic Products, Consumer Electronics

Sealed
Unsealed

Surface Treatment
Nickel Plated

Product Type
Other

Material
PVC

Contact Resistance
3 m

Insulation Resistance
1000 M @ 500V DC

Diameter
Approx. 19mm

Terminal Socket
2/3/4 Pin Options

Style
Straight

Fittings
Screw Mount

Rated Voltage
250V AC/DC

Weight
Approx. 25g

Color
Green & Silver

Flame Retardant
Yes

Shielding
Yes

Voltage Withstanding
1500V AC/minute

Housing Material
High-Grade ABS Plastic

Frequency Range
DC to 3 GHz

Impedance
50 Ohm

Connector Type
RF Male Terminal Block

Mounting Type
Panel Mount

Operating Temperature
-25C to +85C

Contact Material
Brass

Current Rating
Up to 5A

Termination Style
Screw Type

RF Male Connector Terminal Block Trade Information

Minimum Order Quantity
1000 Pieces

Payment Terms
Cash in Advance (CID)

Delivery Time
4-5 Days

Main Domestic Market
All India

About RF Male Connector Terminal Block

Keeping in mind, ever-evolving requirements of our valuable clients, we are offering RF Male Connectors Terminal Block, which terminate a single wire and connect it to a circuit or other system. Our esteemed clients can avail this RF Male Connectors Terminal Block from us in various specifications at competitive prices. In addition to this, this terminal block provide in a range of shapes, sizes and ratings, but always terminate a single wire (single pole) and are never multi-pole.

Specification

Housing	PA66(UL94V-0)
Mounting Options	Panel Mount
Voltage	125 V
Pitch Size	3.81 mm and 3.5mm
Pin Type	12 Pin,4 Pin,2 Pin
Solder Pin	Brass,Tin Plated
Poles	Any Poles92-16P)

Robust Design and Safety

Constructed with high-grade ABS plastic and PVC, the RF Male Connector Terminal Block is flame retardant and designed to withstand demanding environments. Shielded with nickel-plated brass contacts, it offers improved durability, high dielectric strength (1500V AC/minute), and consistent performance. The panel mount style and secure screw termination ensure safe and stable connections for critical applications.

Versatile Application Range

This terminal block is engineered to perform reliably in electric appliances, signal transmission systems, consumer electronics, and testing instruments. Its 50 Ohm impedance, frequency support up to 3 GHz, and various pin configurations (2/3/4) make it adaptable to diverse requirements in the Indian market. Green and silver color coding, along with standard 19mm diameter, allows seamless system integration.

FAQ's of RF Male Connector Terminal Block:

Q: How do I install the RF Male Connector Terminal Block on a panel?

A: To install, mount the connector onto the panel using the provided screw mounts, ensuring the panel thickness is around 3mm. Secure wires with the screw-type termination for a stable electrical connection and proper panel integration.

Q: What types of cables and wire diameters are compatible with this connector?

A: The terminal block is compatible with cables having a diameter between 4mm and 8mm, supporting a range of wire types for electric appliances and signal transmission setups.

Q: When should I choose this RF Male Connector Terminal Block over other connectors?

A: Opt for this connector when you require robust shielding, high voltage withstanding (up to 1500V AC/minute), wide frequency support (DC to 3 GHz), and a flame-retardant, panel-mount design, especially in testing instruments and electronic devices.

Q: Where is this terminal block commonly used?

A: It is frequently used in electric appliances, signal transmission solutions, consumer electronics, and testing instruments, addressing the needs of distributors, suppliers, and traders across India.

Q: What are the main benefits of using a shielded, nickel-plated brass contact with this connector?

A: Shielded, nickel-plated brass contacts provide enhanced electrical conductivity, resist corrosion, and ensure signal integrity-making them ideal for demanding environments and high-frequency applications.

Q: How does the flame retardant ABS housing contribute to safety?

A: The high-grade ABS plastic housing is flame retardant, which helps reduce fire hazards and enhances safety in electronic and electrical installations.
